Q24S30033 DC-DC Converter Data Sheet
18-36 VDC Input, 3.3 VDC @ 30 A Output

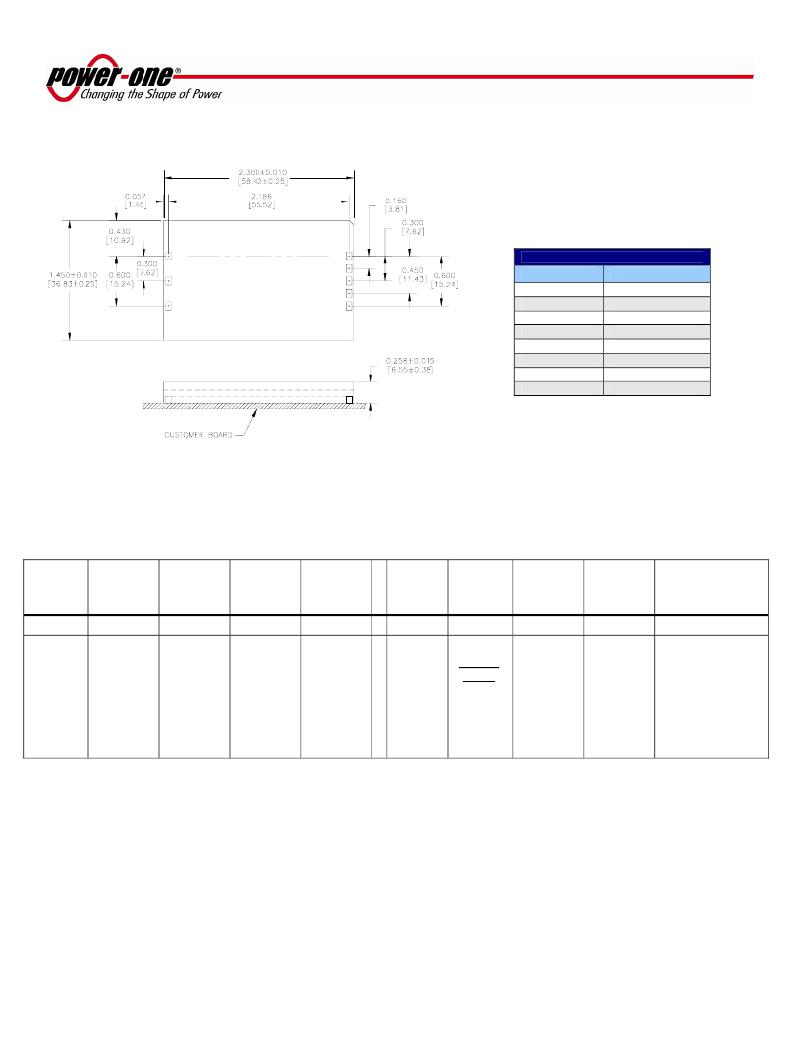

Physical Information
1
8
?
?
?
?
?
All dimensions are in inches [mm]
Connector Material: Copper
Connector Finish: Gold over Nickel
Converter Weight: 1 oz [28 g] typical
Recommended Surface-Mount Pads:
Min. 0.080” x 0.112” [2.03 x 2.84]
Max. 0.092” x 0.124” [2.34 x 3.15]
Pin Connections
2
3
TOP VIEW
7
6
5
4
Pin #
1
2
Function
Vin (+)
ON/OFF
3
4
5
Vin (-)
Vout (-)
SENSE(-)
SIDE VIEW
Converter Part Numbering/Ordering Information
6
7
8
TRIM
SENSE(+)
Vout (+)
Product
Series
Input
Voltage
Mounting
Scheme
Rated
Load
Current
Output
Voltage
ON/OFF
Logic
Maxi-
mum
Height
[HT]
Pin
Length
[PL]
Special
Features
Environmental
Q
24
S
30
033
-
N
S
0
0
No Suffix
1/4
compliant
th
Brick
Format
18-36 V
S ?
Surface
Mount
30 ? 30 A
033 ? 3.3
V
N ?
Negative
P ?
Positive
Surface
Mount
S ?
0.273”
0 ? 0.00”
0 ? STD
Character
? RoHS lead-
solder-exempt
1
G ? RoHS com-
pliant for all six
substances
The example above describes P/N Q24S30033-NS00: 18-36 V input, surface mounting, 30 A @ 3.3 V output, negative ON/OFF logic, RoHS lead-solder-
exempt compliant.
1
The solder exemption refers to all the restricted materials except lead in solder.
MAY 01, 2003 revised to JUN 30, 2006
Page 4 of 14
www.power-one.com
